Signal Probe

Just like in Max, RNBO allows you to monitor audio signals using the signal probe.

Viewing a Signal in RNBO

Make sure that audio is on and running in the rnbo~ object's target platform.

Enable Debugging

In the Debug menu, select Enable Debugging and Signal Probing, so that both menu items have a check mark displayed. If these are enabled in Max, they will be enabled in RNBO as well. If these are disabled in Max, they will also be disabled in RNBO.

Probe Signal Patch Cord

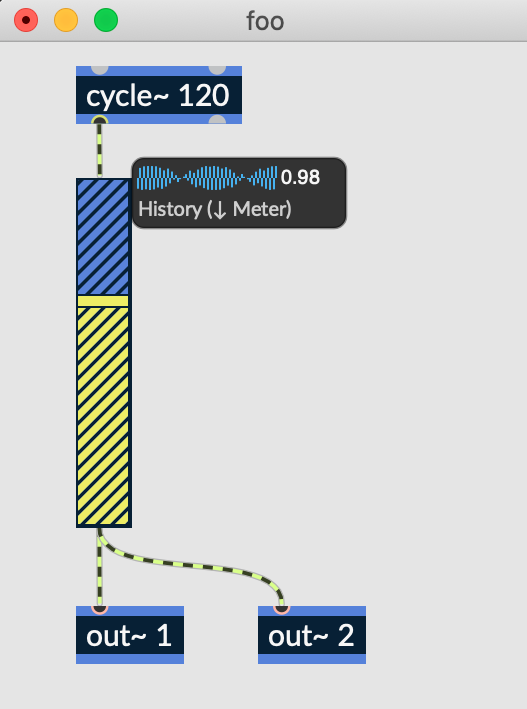

Position your cursor over an audio patchcord in the locked or unlocked RNBO patcher window. This will reveal the signal probe display, and will display the current signal value along with a visualization of the data.
