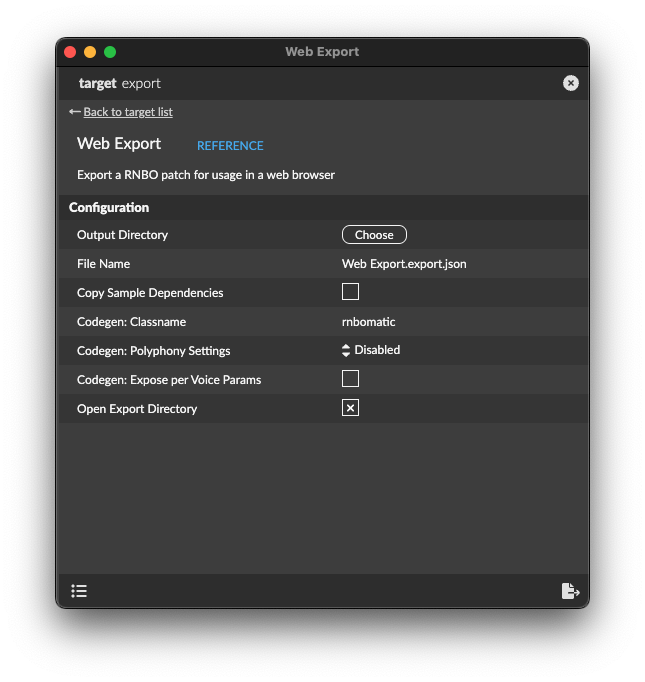

Output Directory Click 'Choose' next to Output Directory to save your JSON to your preferred location. Selecting a filepath that is within Max's search path will allow the JSON to be revealed in-app after the target has been exported. Updating Max's search paths can be set in.

File Name File Name allows you to create a name for your JSON . The name is "patch.export.json" by default.

Copy Sample Dependencies Checking the Copy Sample Dependencies box creates a media folder to the Output directory on export. This folder contains the media referenced in RNBO's sample dependencies.

Codegen: Classname The name of the exported RNBO class in a C++ application. Safe to ignore unless you want to load multiple RNBO exports into the same application.

Codegen: Polyphony Voice Settings:

Linked Exports the number of voices set from the rnbo~ object with the @polyphony attribute . Uncheck if you want to export a different polyphony count than specified in the @polyphony attribute in the rnbo~ object.

Disabled Disables polyphony for the code generated from this export.

Voice Count Sets the desired maximum voice count for simple polyphony.

Codegen: Expose per Voice Params Enable if you want ot modulate the params of individual voices separately instead of as a group.

Open Output Directory Open a file dialog and navigate to the code export directory when the export is complete.
