Exporting to the C++ Source Code Target

Exporting C++ Source Code

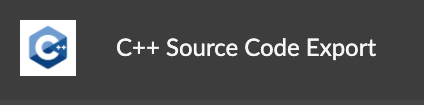

To prepare your rnbo~ to export as to C++ Source code , click the Export Sidebar Icon. Under External Export double-click the C++ Source Code Export option.

When you are ready to export, click on the Export to Selected Target button on the bottom right.

If your code successfully exports, you will be able to see your source code in the location defined by the Output Directory option.

Configuration

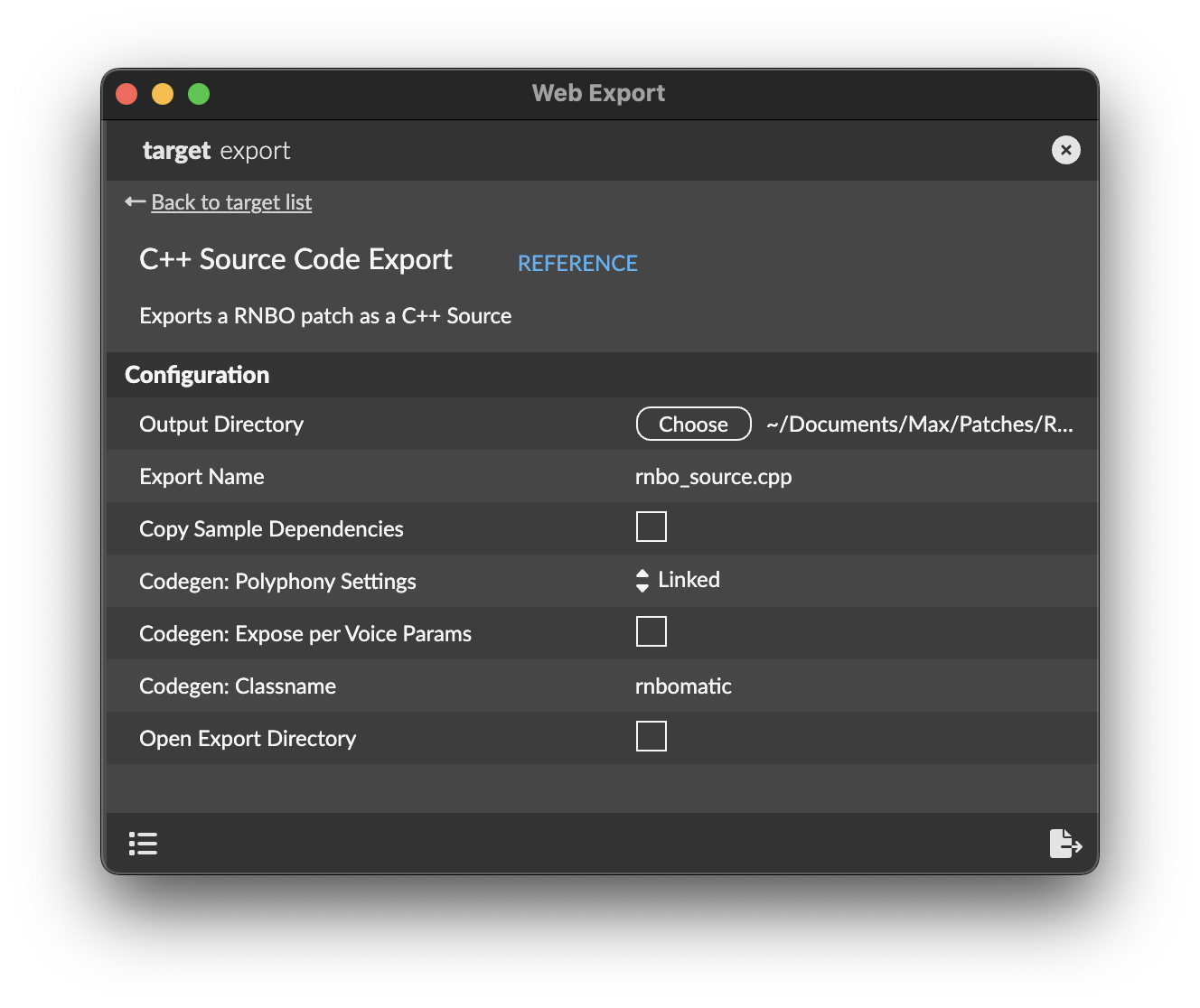

The configuration window provides various configuration options related to the export.

Output Directory Click Choose to save your Max external to your preferred location.

Export Name External Name allows you to create a name for your C++ Source Code. The name is rnbo_source.cpp by default.

Copy Sample Dependencies Checking the Copy Sample Dependencies box creates a media folder to the Output directory on export. This folder contains the media referenced in RNBO's sample dependencies.

Codegen: Polyphony Voice Settings:

• Linked Exports the number of voices set from the rnbo~ object with the @polyphony attribute . Uncheck if you want to export a different polyphony count than specified in the @polyphony attribute in the rnbo~ object.

• Disabled Disables polyphony for the code generated from this export.

• Voice Count Sets the desired maximum voice count for simple polyphony.

Note : Enabling Polyphony also enables automatic voice management via MIDI note on/off pairs.

Codegen: Expose per Voice Params Enable if you want to modulate the params of individual voices separately instead of as a group.

Codegen: Classname Provide a static variable classname for your C++ source code export.

Open Export Directory Open a file dialog and navigate to the code export directory once the export is complete
